Robot-assisted friction stir welding systems

Welding robots: Leading the way with friction stir welding

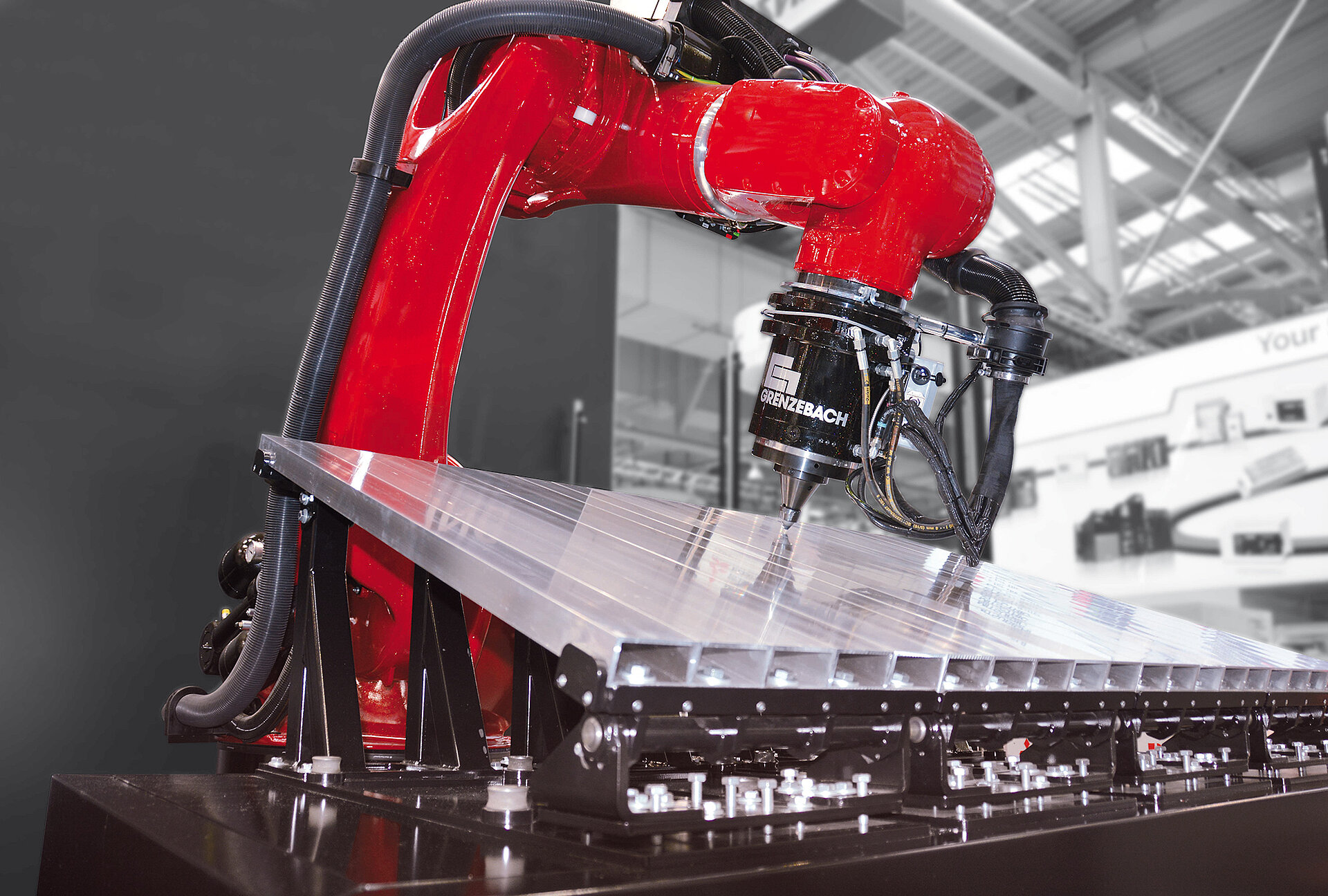

Robot-assisted friction-stir-welding systems from Grenzebach let you take a big step forward. They are very flexible and capable of implementing difficult and complex 3D welding paths. Grenzebach’s experts will give you comprehensive advice on the 6-axis FSW robot system.

Request information

Robot-assisted friction-stir-welding systems

Highly flexible in three dimensions

With its robot-assisted friction-stir-welding systems, Grenzebach has opened completely new areas of application for FSW technology. Welding robots already support numerous applications in industrial 24/7/365 series production; they can also be used in research and development, and for working on prototypes and small batch series.

Active power control combined with robot kinematics not only allows for FSW’s 3D capacity but also makes it possible to weld awkwardly placed parts, such as those in horizontal-vertical positions. With our CAD/CAM programming system, even complex welding lines and parameters can be handled without problems.

  • Higher-level process and system control ensures process stability
  • Working range DSR2000: R 1.295 mm – 2.675 mm; (X/Y plane) Z 3.371 mm
  • Two workstations for loading in parallel during production ensure efficient production
Advanced Manufacturing, Gentherm

“We have been welding heat exchangers for the automotive industry with the robot-assisted system from Grenzebach for several years. We are more than satisfied. Thanks to this technology, we can supply car manufacturers extremely efficiently. This is one way we are contributing to the mobility transformation.”


Ivan Soroka Team Lead Advanced Manufacturing at Gentherm
Robotic cells friction stir welding
Research and development FSW robot

Robotic cells for research, education and industry

R&D FSW Systems

Welding even the thinnest aluminum, or welding a mix of materials with low distortion, media-tight and outstanding surface quality: this is by no means all that friction stir welding can do. Grenzebach’s systems are an ideal way for you to discover the future of FSW technology in the course of research and development.

We offer DSR robots (DSR = Dynamic Stirring Robot) in special designs for research facilities. With full functionality and top quality, our R&D facilities offer optimal space and accessibility to all the measuring equipment.

Reliable, complete recording of all process-relevant machine data is a matter of course. The CAD/CAM feature allows maximum flexibility when it comes to changing the test setup or object. In special cases, our technical support provides reliable assistance. We see ourselves not only as a technology expert and robot manufacturer, but also as a discussion partner for all your questions.

Easy to expand and convert

Combine your R&D robot cells the way you want with welding tables, measuring equipment and media feeders. There are no limits to the possibilities for discovery and experimentation. The equipment depends on your questions – your needs.

Flexible use

Discover the possibilities with FSW: which materials and components can be welded? In addition to a wide range of applications in the automotive industry, friction stir welding is also being used increasingly frequently in consumer electronics and the construction industry. For example, FSW robots join formed aluminum sheets for rooftop solar collectors that harness the power of the sun for energy.

Very reliable

FSW cells are designed for 24/7 use. Our robotic systems are highly robust and resilient, so they’ll always be able to handle new problems.

3D model friction stir welding
Programming software friction stir welding

From 3D model to finished welding program in just a few clicks

Professional CAD/CAM

The programming software specially developed for friction stir welding processes makes it easier for users to create welding programs. In addition to the weld path and the FSW process parameters, control over clamping devices can also be programmed in the CAD/CAM environment. Programming is carried out offline on a separate PC so it doesn’t slow down the system. The finished welding program can then easily be installed onto the system via a USB or network connection.

  • Import of 3D models
  • Geometry selection and path definition in the 3D model
  • Simple modification options for the path geometry
  • Definition of FSW process parameters and changes for individual path points and segments
  • Insertion of action points in the weld path
  • Collision detection of tools and parts
  • Reachability check
  • Possibility of importing different reaming tool geometries
  • Creation and management of a tool database
  • Documentation function and traceability of parameter or path changes, for example
